The AxiWin® AGM battery is a battery of absolute quality, produced according to the latest AGM technology. They are specially designed and produced to supply high current flows (capacity up to 220 Amp) and deeper discharges.
The AxiWin® AGM batteries have the following special properties:
SAFE:
The acid of the AxiWin® AGM batteries is permanently absorbed in the glass fibre separators, which makes the battery leak-proof (UN2800). AGM batteries produce almost no gas.
The formation of oxyhydrogen can only occur as a result of very serious overcharging and then only in very low concentrations.
Although a well-ventilated battery compartment is always the preferred choice, the AGM battery is the ideal choice if this is not possible.
EASE OF USE:
The applied technology allows 99.5% of the liquid to be recombined during charging. Except for the necessary recharging, an AGM battery requires no additional attention.
RELIABLE:
The glass fibre mat in the AGM batteries contains relatively little acid but in an increased concentration. This makes the batteries lighter in weight and makes the battery resistant to deep discharging. It is furthermore capable of providing high starting currents and it will charge quickly. The DC series has additional cyclic power, which makes it highly suitable for use in heavy applications such as internal transport, hydraulic arms, bow thrusters, anchor winches, solar panels, and in particular also for use as a service battery in caravans and boats. In short, the AGM battery is the new alternative for the “old fashioned” GEL technology!
VERSATILE:
An AGM battery can be mounted in all positions. It is even no problem to permanently install the battery at a 90-degree angle.
AxiWin® AGM+ AGM semi-tractie battery | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Type No. | Capacity 20HR | CCA (EN) |

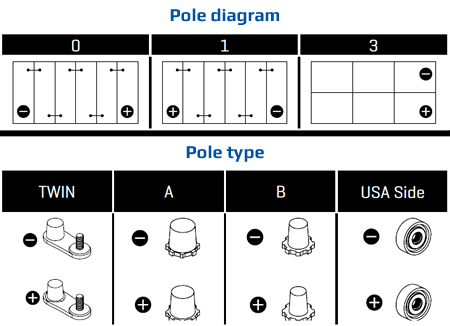

Dimensions in mm | Pole diagram |
Pole type |

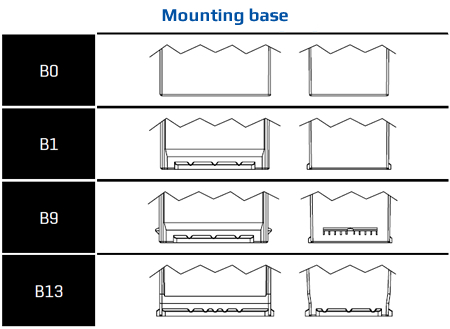

Mounting base |
Weight (Kg) |
|||
L | W | H | TH | |||||||
AXW AGM DC60 | 60Ah(20hrs) | 460 | 242 | 175 | 190 | 190 | 0 | A | B13 | 17,8 |
AXW AGM DC70 | 70Ah(20hrs) | 600 | 278 | 175 | 190 | 190 | 0 | A | B13 | 21 |
AXW AGM DC85 | 85Ah(20hrs) | 720 | 353 | 175 | 190 | 190 | 0 | A | B13 | 26,7 |
AXW AGM DC105 | 105Ah(20hrs) | 800 | 345 | 175 | 210 | 230 | 0 | A | B13 | 28,3 |
AXW AGM DC130 | 130Ah(20hrs) | 950 | 513 | 189 | 203 | 223 | 3 | A | B0 | 39,1 |
AXW AGM DC180 | 180Ah(20hrs) | 1050 | 513 | 223 | 203 | 223 | 3 | A | B0 | 46,3 |
AXW AGM DC200 | 200Ah(20hrs) | 1200 | 518 | 274 | 222 | 242 | 3 | A | B0 | 54,5 |
AXW AGM DC220 | 220Ah(20hrs) | 1400 | 518 | 274 | 220 | 240 | 3 | A | B0 | 59,5 |
AxiWin® AGM+ AGM start/stop battery | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Type No. | Capacity 20HR | CCA (EN) |
Dimensions in mm | Pole diagram |
Pole type |
Mounting base |
Weight (Kg) |
|||
L | W | H | TH | |||||||
AXW AGM60 | 60Ah(20hrs) | 680 | 242 | 175 | 190 | 190 | 0 | A | B13 | 16,9 |
AXW AGM70 | 70Ah(20hrs) | 760 | 278 | 175 | 190 | 190 | 0 | A | B13 | 19,6 |
AXW AGM80 | 80Ah(20hrs) | 800 | 314 | 175 | 190 | 190 | 0 | A | B13 | 22 |
AXW AGM95 | 95Ah(20hrs) | 850 | 353 | 175 | 190 | 190 | 0 | A | B13 | 24,9 |
AxiWin® AGM+ EFB start/stop battery | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Type No. | Capacity 20HR | CCA (EN) |
Dimensions in mm | Pole diagram |
Pole type |
Mounting base |
Weight (Kg) |
|||
L | W | H | TH | |||||||
AXW EFB60 | 60Ah(20hrs) | 560 | 242 | 175 | 190 | 190 | 0 | A | B13 | 16,2 |
AXW EFB65 | 65Ah(20hrs) | 650 | 278 | 175 | 175 | 175 | 0 | A | B13 | 17,2 |
AXW EFB70 | 70Ah(20hrs) | 650 | 278 | 175 | 190 | 190 | 0 | A | B13 | 18,9 |
AXW EFB80 | 80Ah(20hrs) | 730 | 315 | 175 | 190 | 190 | 0 | A | B13 | 21,8 |
AXW EFB110 | 110Ah(20hrs) | 950 | 398 | 175 | 190 | 190 | 0 | A | B13 | 28,7 |
